Description

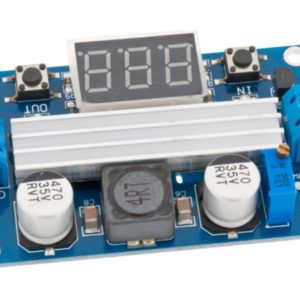

- Boost Converter Switching Power Module
- Adjustable output voltage: 5V to 35V
- Wide range input voltage: 4.5V to 32V
- Step up converter, Vout > (Vin + 1V)
- Comes with 3-digit 7 segment display, to show Vin or Vout
- A Push Button to configure the 7 segment display
- Maximum output current:
- Peak: 3A
- Continuous: 2A
- Output voltage ripple: 30mV
- Switching frequancy: 400KHz
- Efficiency: 92% max
- Rated Power: 20W
- Operating temperature: -45ºC to +85ºC
- Dimension: 66mm x 36mm x 14mm
