Description

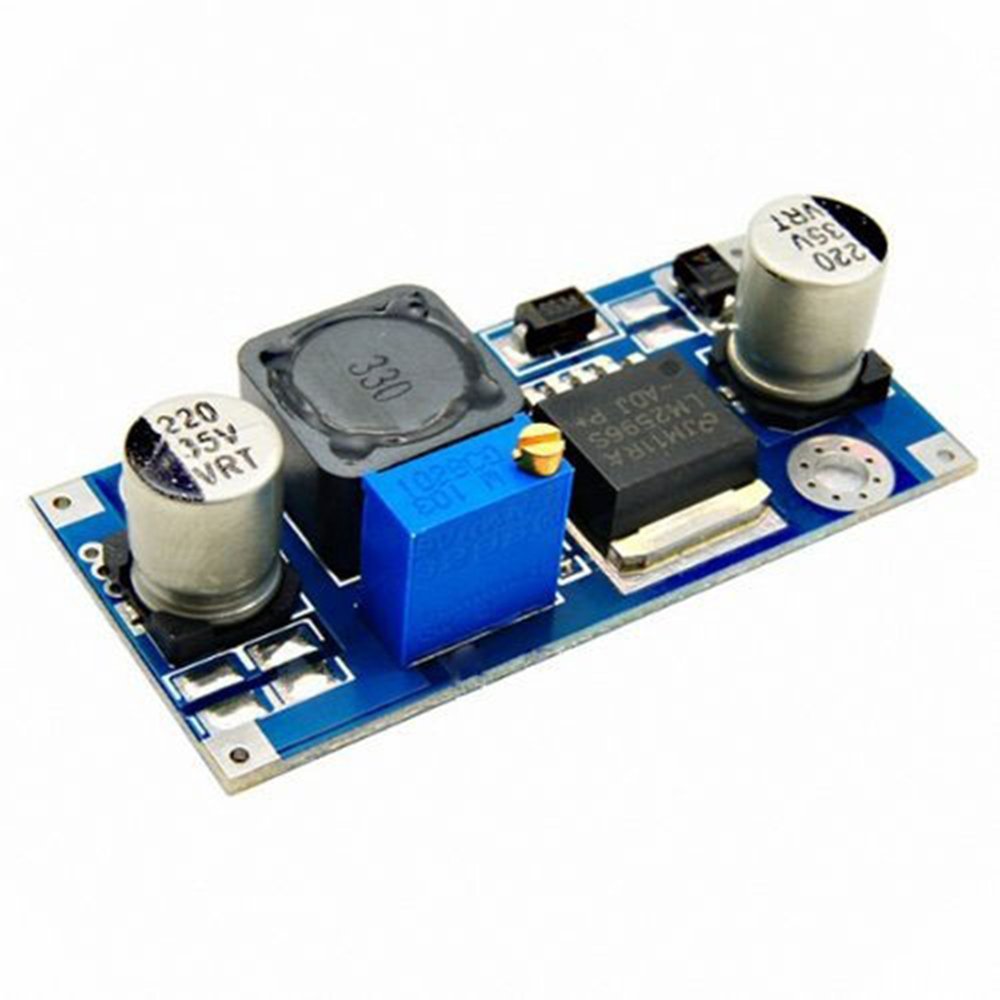

LM2596 Buck Converter Module Features:
- Isolation type: non-isolation buck converter
- Rectification mode: non-synchronous rectifier
- Input voltage: 4V-40VDC
- Output voltage: 1.3V-35VDC
- Output current: Rated current is 2A, maximum 3A (Additional heatsink is required)
- Conversion efficiency: 92% (highest)
- Switching frequency: 65KHz
- Output ripple:30mV (maximum)
- Load regulation: ±0.5%
- Voltage regulation: ± 2.5%
- Work temperature: -40 ? – +85 ?
- Dimension: 43mm*21mm*14mm(L*W*G)
